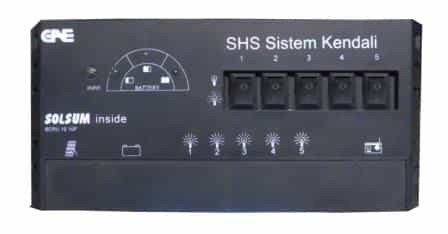

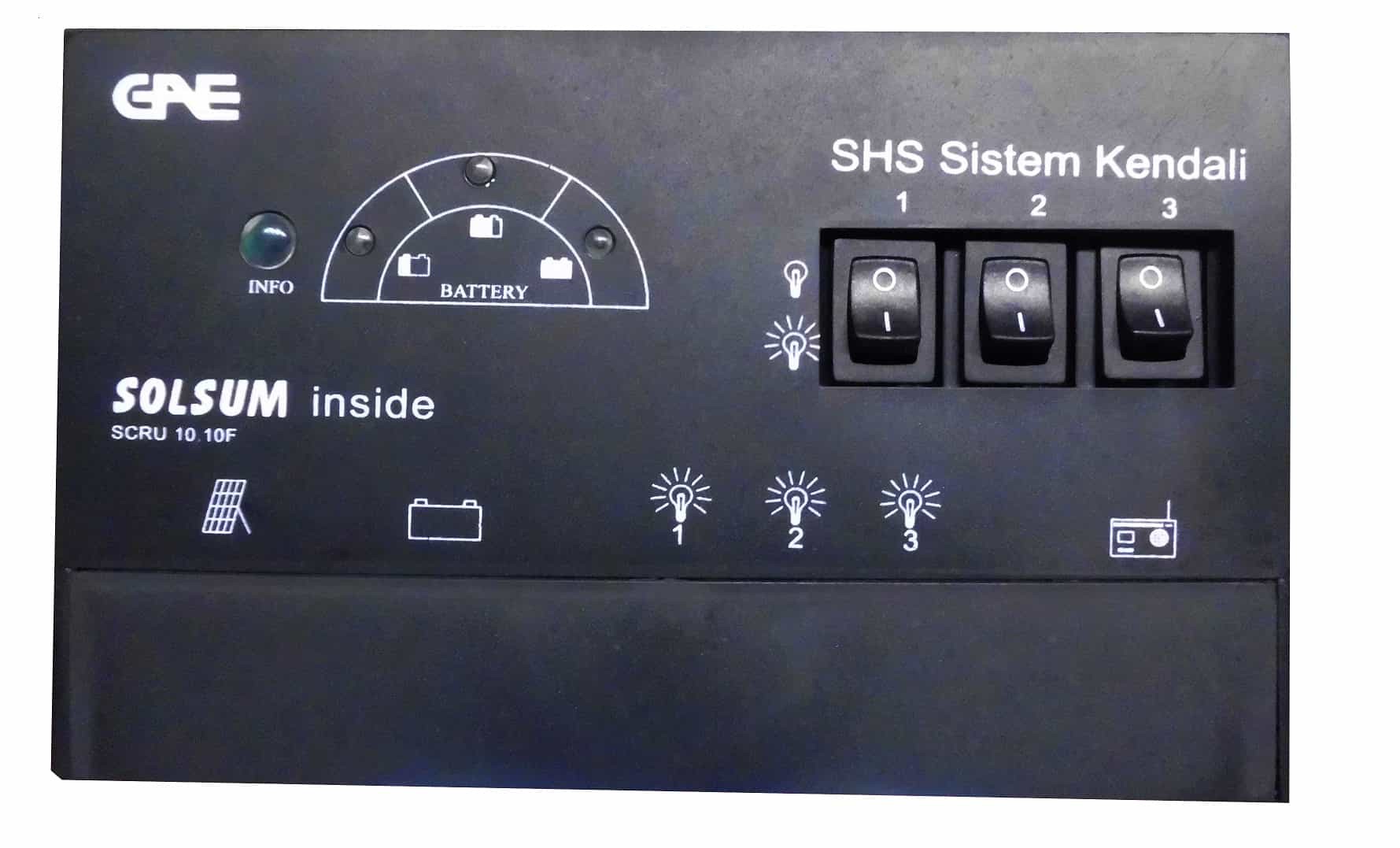

SPECIFICATION Type : 10:10 F Type SCRU : On- Off Series / PWM Nominal Voltage : 12 VDC Input Current Rating : 8 A Load current rating : 10 A Upper limit voltage : 14:50 V Recommendations voltage upper limit : 13.70 V Lower limit voltage : 11:50 V Recommendation lower limit voltage : 12:50 V Short Circuit Protection : Electronic Output terminal : 6V, 9V, 12V Dimensions ( LxWxD ) : 200 x 110 x 48 mm Guarantee : 1 year Certificate : SNI 04-6391-2000 of B2TE valid Indicator : - LED charging light up green color - Battery full color LED lights up green - Battery almost empty the LED lights up red color - There was a short circuit LED lights up Red

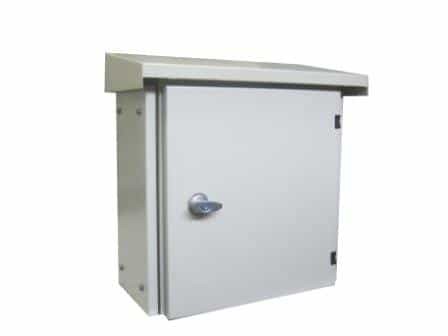

TYPE : GP 56 LED LIGHTS : GE lighting 56 Watt ERMSDS2C56WDSG Battery Voltage : 24 VDC Battery Charge Regulator : MPPT 20/10 Battery : VRLA 2x 100 Ah / 12 VDC DIMMER CONTROL : SUL 181 D MATERIAL : IRON PLATE 1.2- 2 mm ( on request ) COLOR : RAL 7032 SIZE ( LXWXH ) : 610 x 360 x 660 mm WEIGHT ( Kg ) : 25 Kg

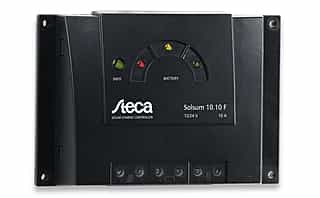

SPECIFICATION Type : 10.10 F Type SCRU : On-Off Seri / PWM Nominal Voltage : 12 VDC Input Current Rating : 8 A Load current rating : 10A Upper limit voltage : 14.50 V Recommendations voltage upper limit : 13.70 V Lower limit voltage : 11.50 V Recommendation lower limit voltage : 12.50 V Short Circuit Protection : Electronic Output terminal : 6V, 9V, 12V Dimensions ( L x W x D ) : 200 x 110 x 48 mm Guarantee : 1 year Certificate : SNI 04-6391-2000 of B2TE valid Indicator : - LED charging light up green color - Battery full color LED lights up green - Battery almost empty the LED lights up red color - There was a short circuit LED lights up red

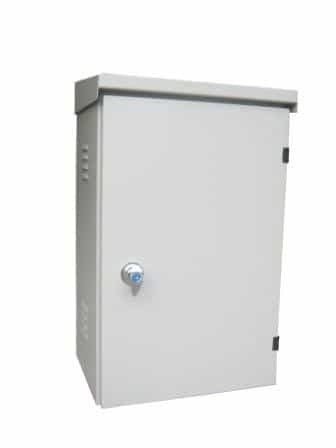

LED LIGHTS 20 Watt 40 Watt 60 Watt Hybrida TYPE GP 20 GP 40 GP 60 GPH 100 Battery Voltage 12 VDC 12 VDC 12 VDC 12 VDC SCC PWM SOLSUM 8.8 MPPT 20 A MPPT 20 A MPPT 20 A Battery VRLA 100Ah/12V VRLA 200Ah/12V VRLA 200Ah/12V VRLA 200Ah/12V INVERTER - - - 300 VA Sinus 50 Hz MATERIAL IRON PLATE 1.2mm IRON PLATE 1.2mm IRON PLATE 1.2mm IRON PLATE 1.2mm COLOR RAL 7032 RAL 7032 RAL 7032 RAL 7032 SIZE ( LXWXH ) 560X220X510mm 675X320X550mm 675X320X550mm 675X320X550mm WEIGHT ( Kg ) 20 Kg 25 Kg 25 Kg 25 Kg

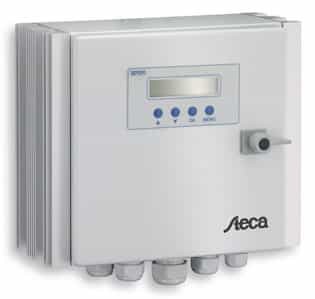

SPESIFICATION System Voltage : 12V (24v) Rated output : 250 W (500W) Max. efficiency : >98% Own consumption : 10 mA MPP Voltage : 15 V (30V) < U module << 100V Module current : 18A Charging Current : 20 A Load current : 10 A

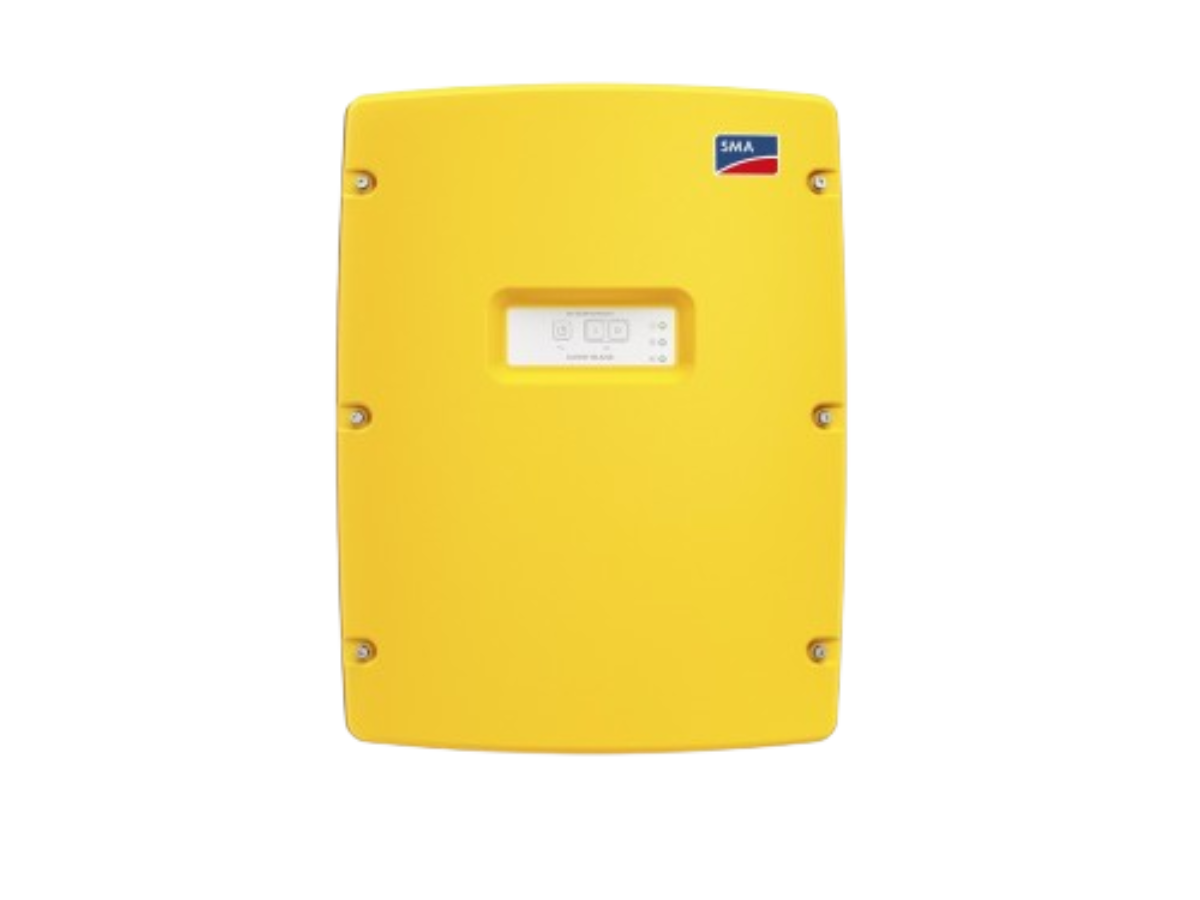

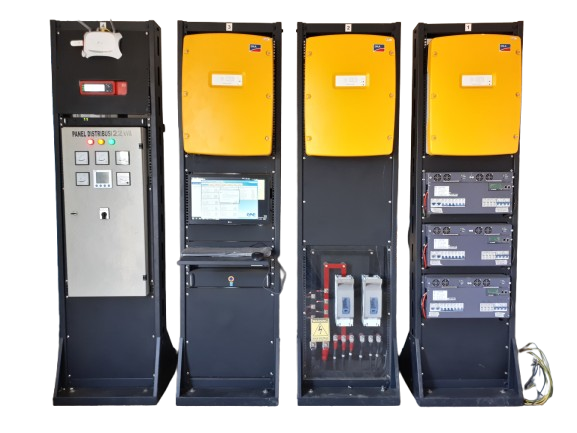

SUNNY ISLAND 6.0H / 8.0H FOR OFF-GRID AND ON-GRID APPLICATIONS The new SMA Sunny Island 6.OH /8.OH supports a wide rang of on-grid and off-grid applications with compelling productfeatures from operation in remote off grid areas to home energy management. The high protection classwide temperature range and exceptional overload capasity provide the kind of security needed for off-grid use.intellegent load and energy management keeps the system running even in critical situasions.The Quick Configuration Guide and intuitive user interface help ensure an easy, convenient installationin any applications scenario.That makes the ultimates all purpose product solution for on-grid and off-grid. Efficient -Max. efficiency: 96 percent -High efficiency of overall system -Easy and fast installation and commisioning Reliable -Proven safety thanks so external certification -Long battery service life thanks to intelligent battery management -Reliable operation thanks ro extreme overload capacity Flexible -For self-consumptin and battery backup system in on grid and off grid applications -All lead-acid and many lihium0ion batteries can be used -Ideal for retrofits or modular expantions od single-phase and three-phase systems Durable -Extreme overload capacity -Opti Cool active temperature management system -5-year standard warranty

The expert cost saver for high-yield, commercial plants Peak performance in a significant reduced specific price the new SMA Sunny Tripower TL Economic Excellent is the next logical step in the development of the Sunny Tripower series in terms of achieving an optimum price-performance ratio. It brings with it a considerable reduction in investment costs, while it can be guarantee exceptionally high yields with an efficiency of 98,5 %. Hence the Sunny Tripower is the ideal inverter solution for uniformly structured PV plants on the medium to very large scale. The focus is on the essential and meets all requirements including reactive power provision, grid support and grid management integration up to 60 kW. Economical -Maximum efficiency 98,5% -OptiTrac for best MPP tracking efficiency -Active temperature management with OptiCool -Bluetooth communication Simple -Three-phase feed-in -Cable connection without tools -SUNCLIX DC plug-in system Flexible and future-proof -DC input voltage up to 1000V -Integrated grid management functions -Reactive power capability

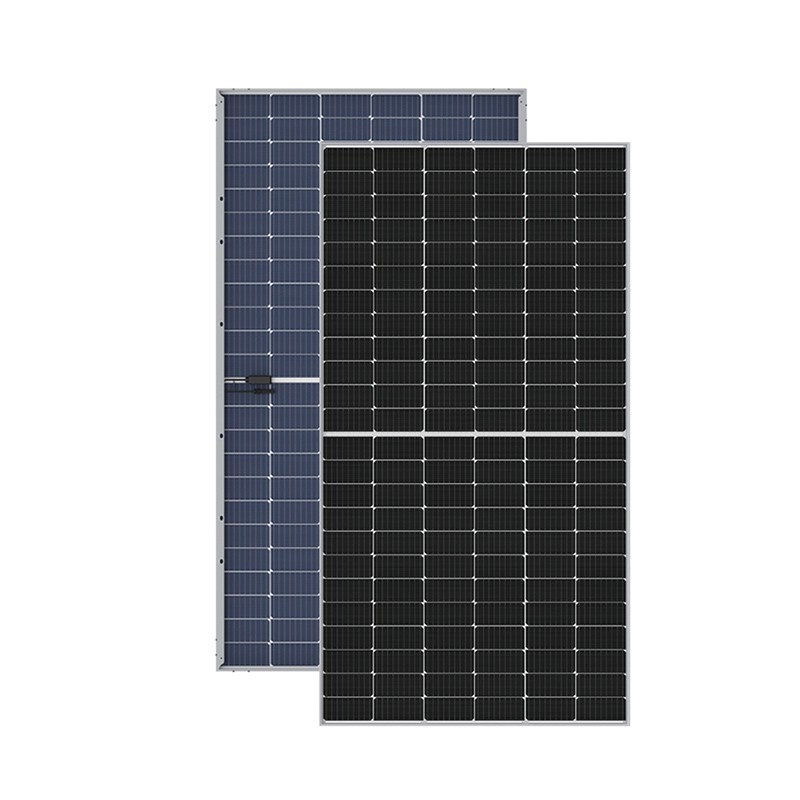

Our Business is always abreast of new technology of PV Solar , such as PERC technology of cells , Half Cut cell PV module and Cells sizing. Brand high quality of PV modules are available to support your needs from Sunergy USA Works LLC. From sand to module Highest quality in all production steps The journey that starts with silicon and ends with a large-scale solar facility is long and has many stops along the way. As one of the largest solar companies in the world, attaches great importance to the highest quality – at every stage of production. Performance Guarantee Sunergy USA Works LLC is setting new Standarts with the GroundBreaking 25-Year linear performance Guarantee a maximum degradation of just 0.35% p>a provides guaranteed module performance of 90% after 12 years and 80% after 25 yaers Power range and Certification Sunergy USA Works LLC has High Power Range of solar module , starting 535 Wp up to 550 Wp with HC monocrystalline silicon cell All certification such as IEC 61215 , IEC 61730 , IEC 61701 ,IEC 62716 , IEC 62804 , UL , SNI - IEC 61215. Factory certificate ISO 9001 , ISO 14001 ,ISO 45001.

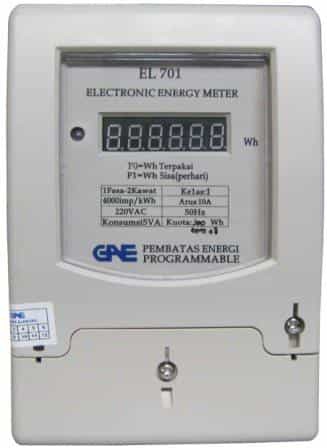

GAE Programable Energy Limiter is suitable for limiting application energy in PV off grid system. Energy Limiter functions as an accurate energy barrier. Made with triac as power breaker that can be energized maximum 10A continuous. To use the program to change the quota and charging time. SPECIFICATIONS Nominal Voltage : 220VAC Frequency : 50 Hz Maximum flow : 10A Wiring : Direct connection to 10 A without external CT Display : 6 -digit 7 - segment LED Indicators : load ON / OFF Display units kWh : Displays Total Energy & Energy Remaining Terminal Data : For connection to remote settings Power Shock : 6kWh , 1.2 / 50 micro sec Power consumption : 3W / 5VA Temperature : -20 ° C to 60 ° C Mounting : Wall mount Memory Storage : Data Security 10 years

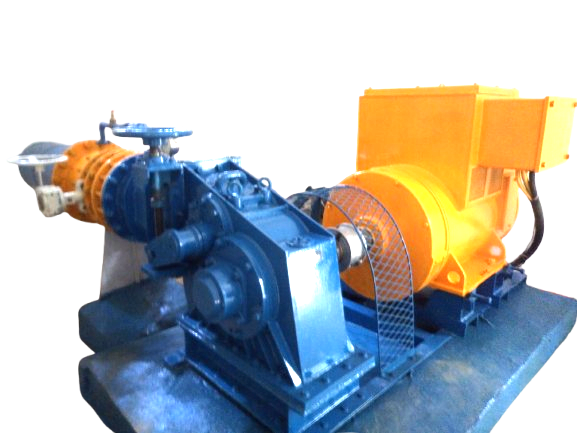

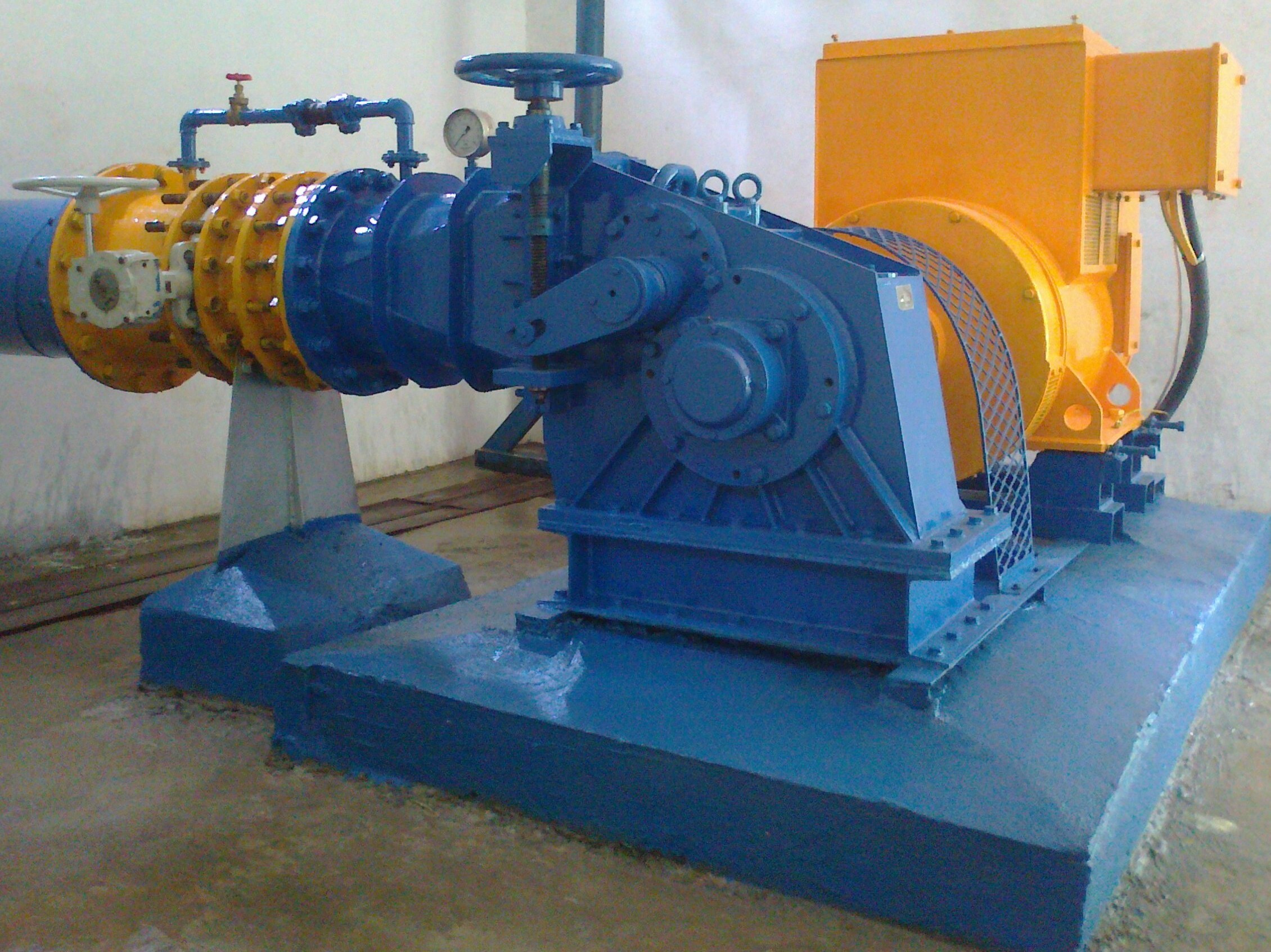

GAE Cross flow water turbine for microhydro electricity . Capacity is upto 250 kW Making electricity from falling water seem like magic, and that's led to lots of misconceptions. With separate fact from fiction when it comes to what microhydro systems can and cannot do. Modern microhydro equipment comes from proven technology based on designs that have changed very little over the decades. SPECIFICATION Type : Head Medium Type Turbine : Cross Flow Power : 15 - 200 kWatt Frequency : 3 x 380 Volt High water : 50 Hz sinusoidal Voltage : 15 - 100 meters Volume of water : 50 - 2000 liters / sec

PAT ( Pump As Turbine ) used for microhydro electricity . Capacity is upto 500 kW. TURBIN MIX FLOW Projects implemented in the area Santong , West Lombok province of East Nusa Tenggara in 2008. Head : 10 meters Power : 30 kW

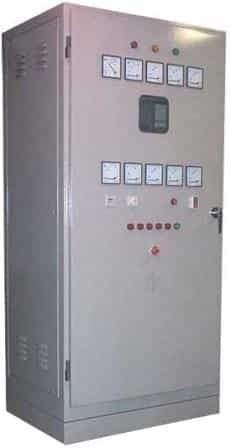

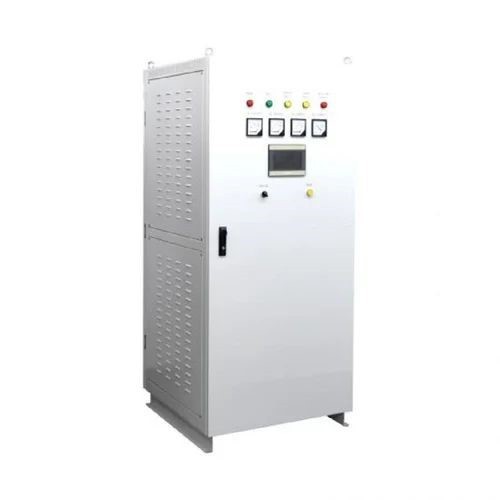

GAE has developed Microhydro Controller upto 500 kW. All components are used with high quality. Operating System Control Panel : ELC (Electronic Load Controll ) / Digital System Advantage : -More Accurate -Easy adjustment with field System Installation : -Standing , Wall Mounting -Overload protection (Under / Over Voltage ) Over frequency -Display of Voltage, Current , Frequency and kWh

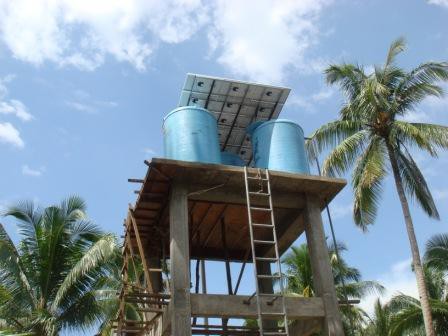

Application for drinking water supply and small irigation system. Debit up to 1 m3 / sec and head up to 200 m. SPESIFICATION -Solar Pumping using Standart Submersible Pumps with deeper 600m, and Water Volume 400 m3 each day -MPPT Control -Pump Power : - 1 phasa : 550 W - 5000 W -3 phasa : 550 W - 75 kW -Voltage : 220/380 VAC -Solar Panel 900-120 kWp -Outer diameter pipe 1 1/4 inch -Casing 4 inch

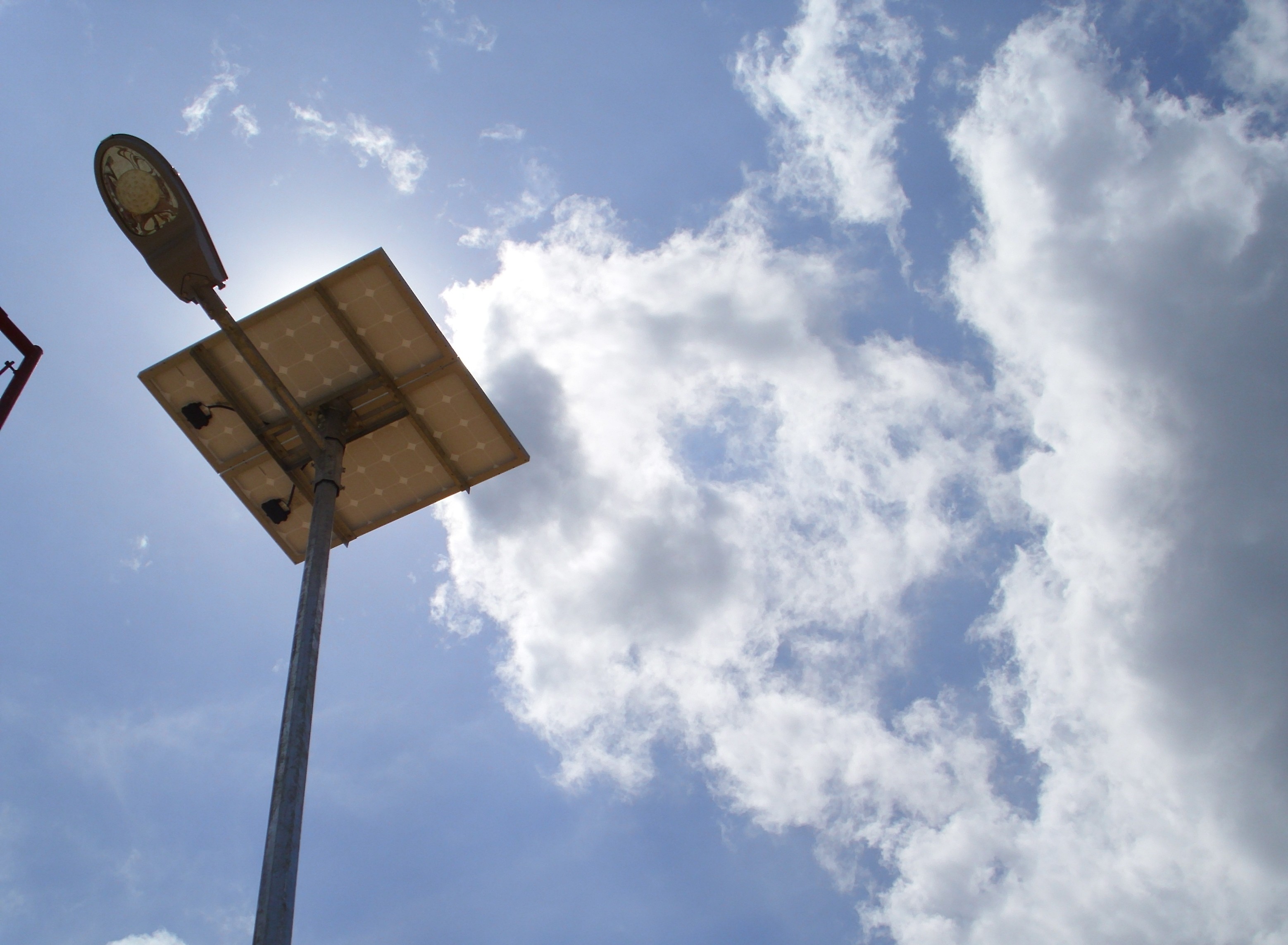

Street lighting ( PJU ) Solar LED street lighting is the use of LED ( Light Emitting Diode ) is a semiconductor that when given voltage will emit light energy using solar power alternative as a power supply . It is used for roads in areas not reached by PLN and also areas that are experiencing electric energy crisis , especially in remote areas . But today PJU LED Solar is also in use for many urban areas such as major roads , residential area roads , bus stops , parking lots , gas stations etc . Street lighting (PJU ) LED Solar fitted with a height of 6 to 9 meters with a pole spacing up to 25 m . STRENGTHS -Environmentally Friendly -Energy saving -Suitable installed in any location -More light and durable -Pollution-free -Quick and easy to install -Save the cost of care -Free from insects -Available with power ranging from lamps with up to 100W -Stand alone without the withdrawal of the cable to power the lights SPESIFICATION - Lamp LED up to 100W - Panel Control : - Dimmer - Solar Control MPPT - Battery VRLA /Lithium LiFeP04 - Solar Panel up to 550 Wp HC monocrystalline cell

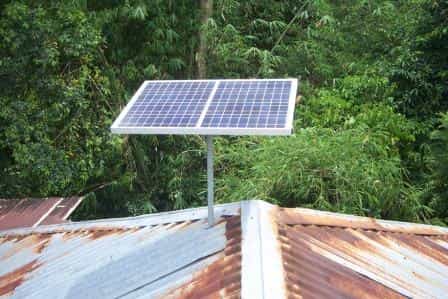

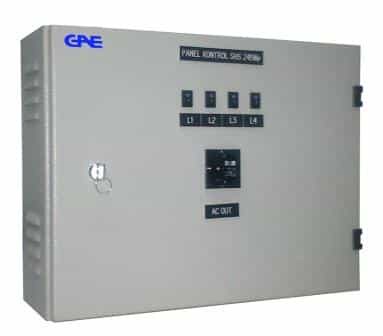

SHS is one of the application of solar systems for village electricity , as individual home lighting system , which consists of several main components of Solar Panels that generate electricity from sunlight , battery as energy storage , Battery Charged Regulator (BCR) as a means of automatic control and lights which convert electricity into light . SHS is suitable for lighting disadvantaged areas not reached by the flow of electricity and also areas that are experiencing electric energy crisis especially remote areas. Basic application PV system is Solar Home System, for individual house hold electricity in remote . GAE has developed up to 250 Wp .

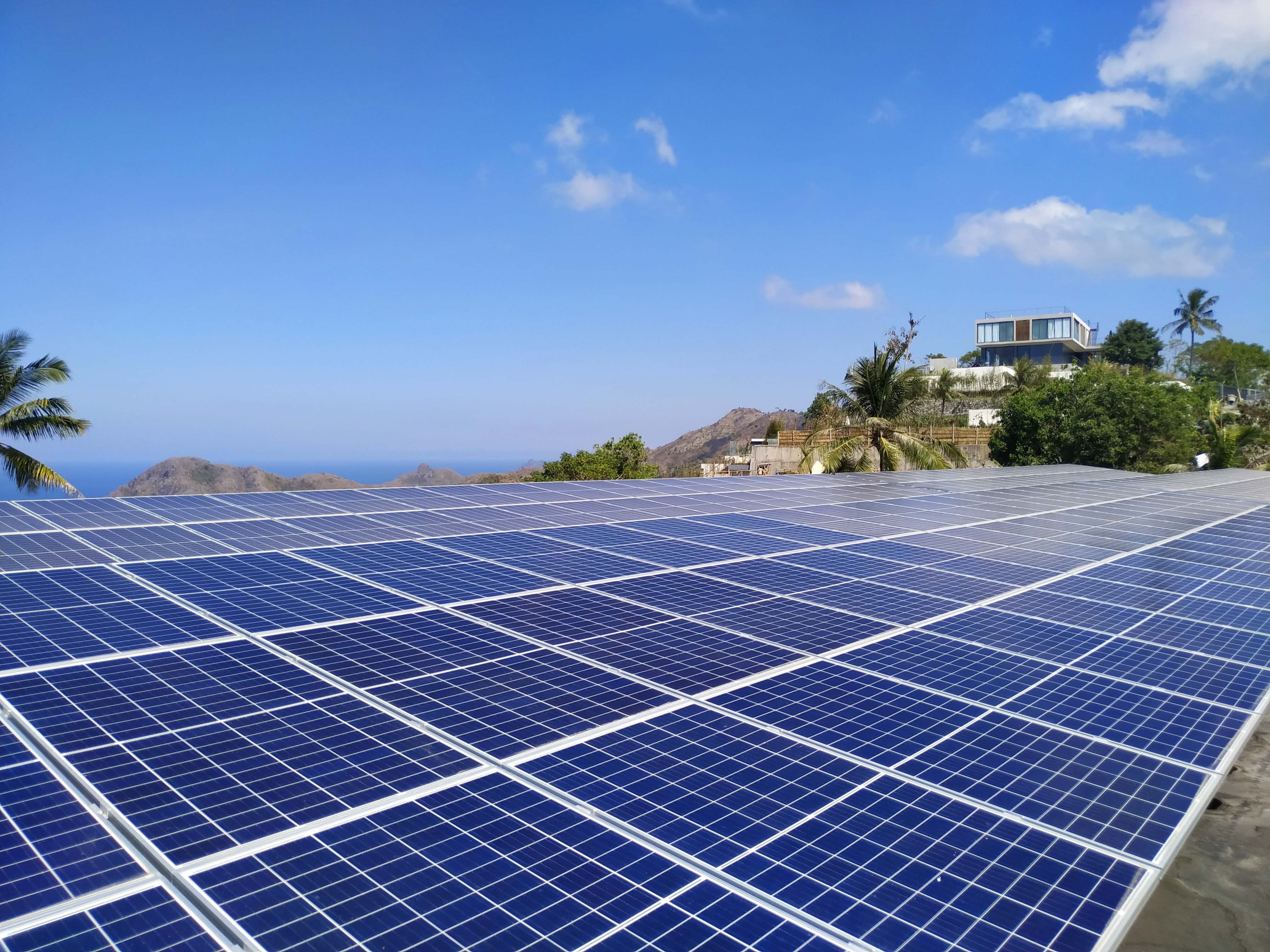

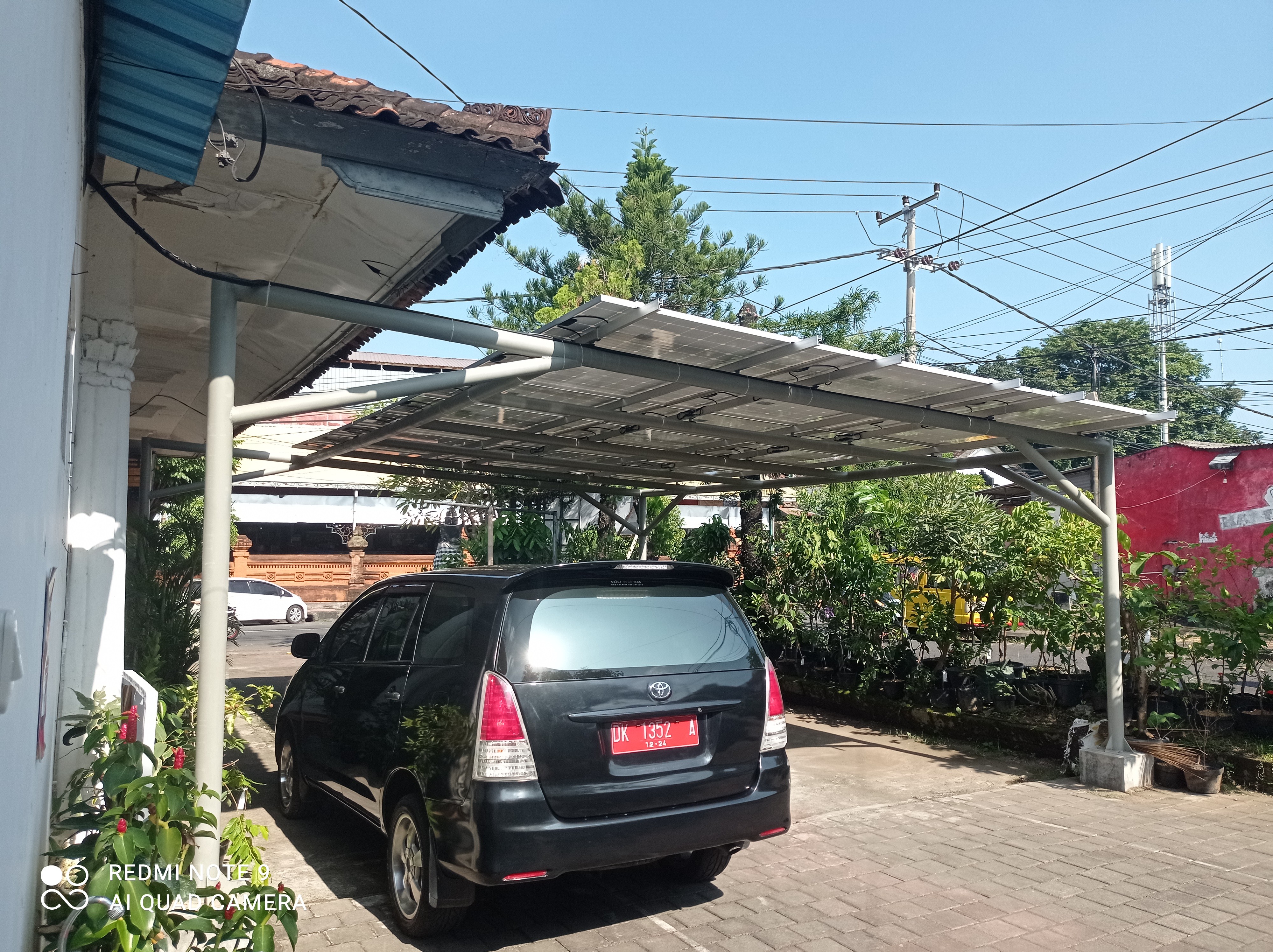

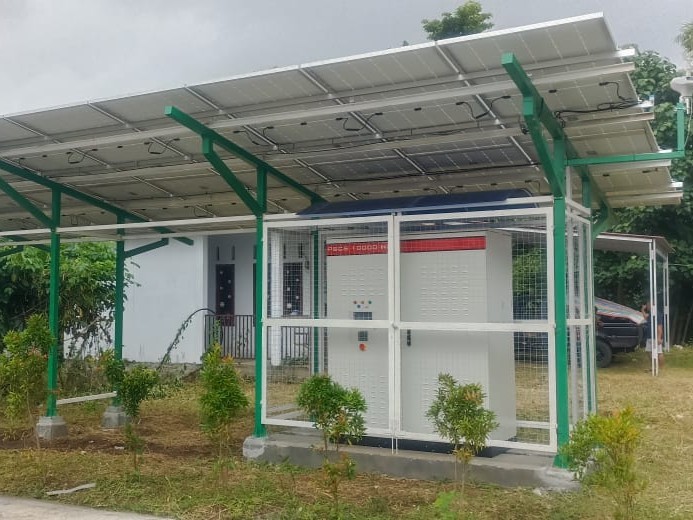

PV On Grid is a technology that uses photovoltaic cells (solar cells) to convert sunlight into electricity. This is a type of PV system that produces directly electricity as a follower from network electricity or diesel generator. The electrical energy generated by the solar panel can be directly applied to the load and the rest will be supplied to network, if the sunshine become lower intensity ,automatic electricity will be balanced from network. Used as power support in other large power plants, especially diesel. It is intended for the energy efficiency of non-renewable resources used by many power plants in the world. This system is suitable for offices, airports, malls and homes so as to reduce network electricity costs. The supporting components of this system are as follows : - Solar Panels - Grid Tie Inverter - Mounting System - Cable - Monitoring System

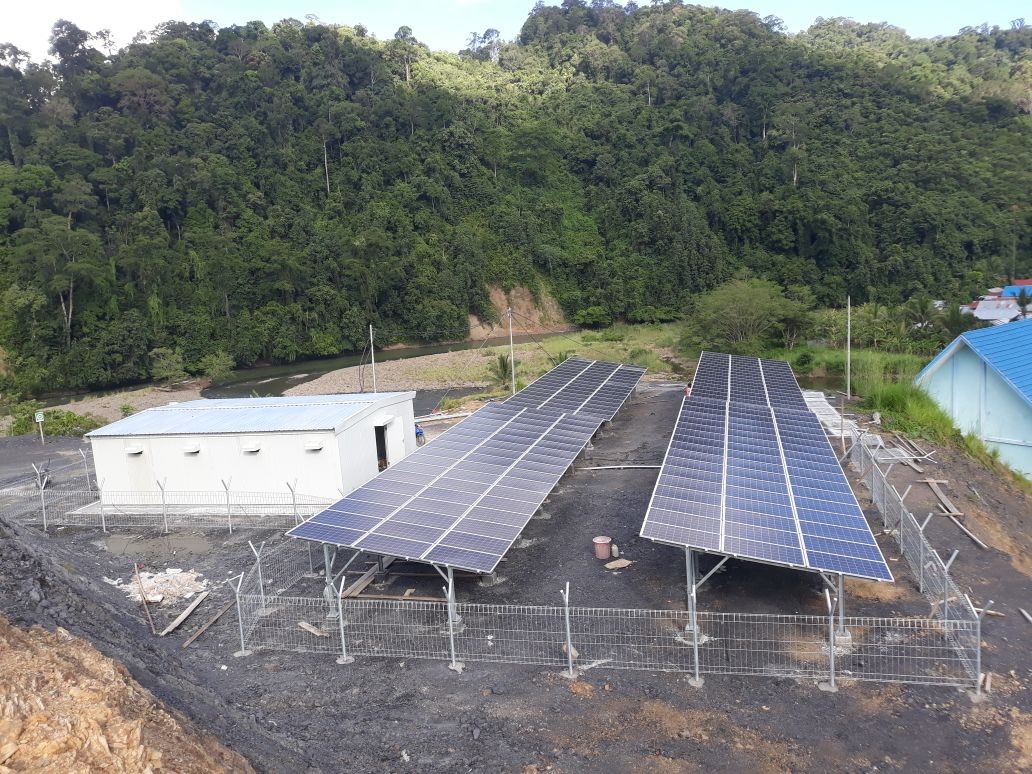

Solar Power Plant which relies on solar energy as the sole energy source, which is not interconnected with the main electricity network or grid (PLN) and has a battery for nighttime use. PV Off Grid System produces electricity in 1 phase or 3 phase, supply to house at small village in remote.

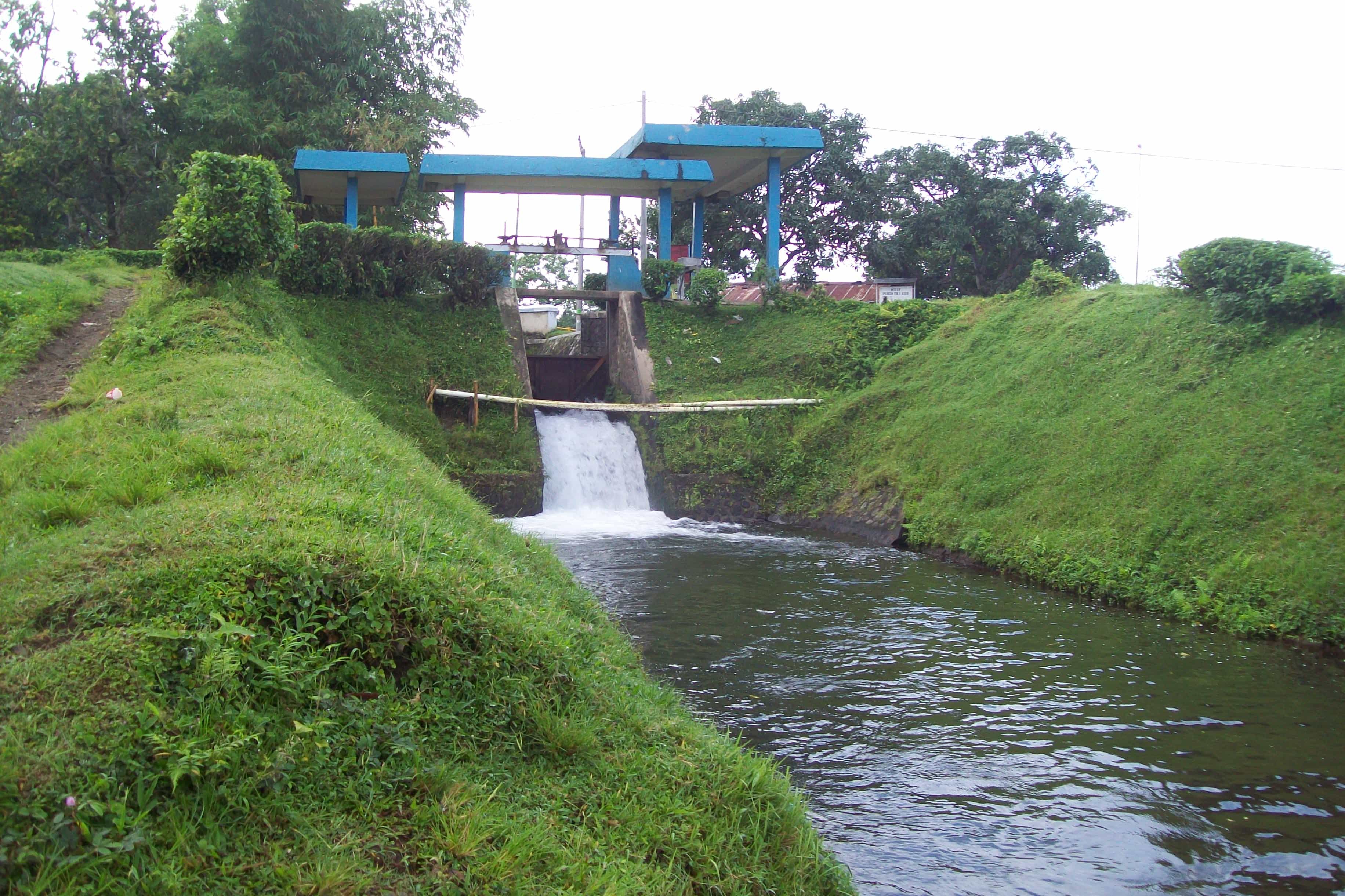

A Mini Hydro Power Plant (PLTMH) is a renewable energy solution that utilizes river or irrigation water flow to generate environmentally friendly electricity. With its compact design, high efficiency, and low operational costs, PLTMH is suitable for supporting village electrification, small industries, and off-grid needs. Available in various capacities (mini hydro power plant is between 100kW-1MW), this system is capable of providing a stable, sustainable energy supply and supporting the achievement of green energy targets.

TURBIN MIX FLOW Projects implemented in the area Buntilang, East Luwu, South Sulawesi in 2010 Head : 8 meters Power : 3 x 70 kW

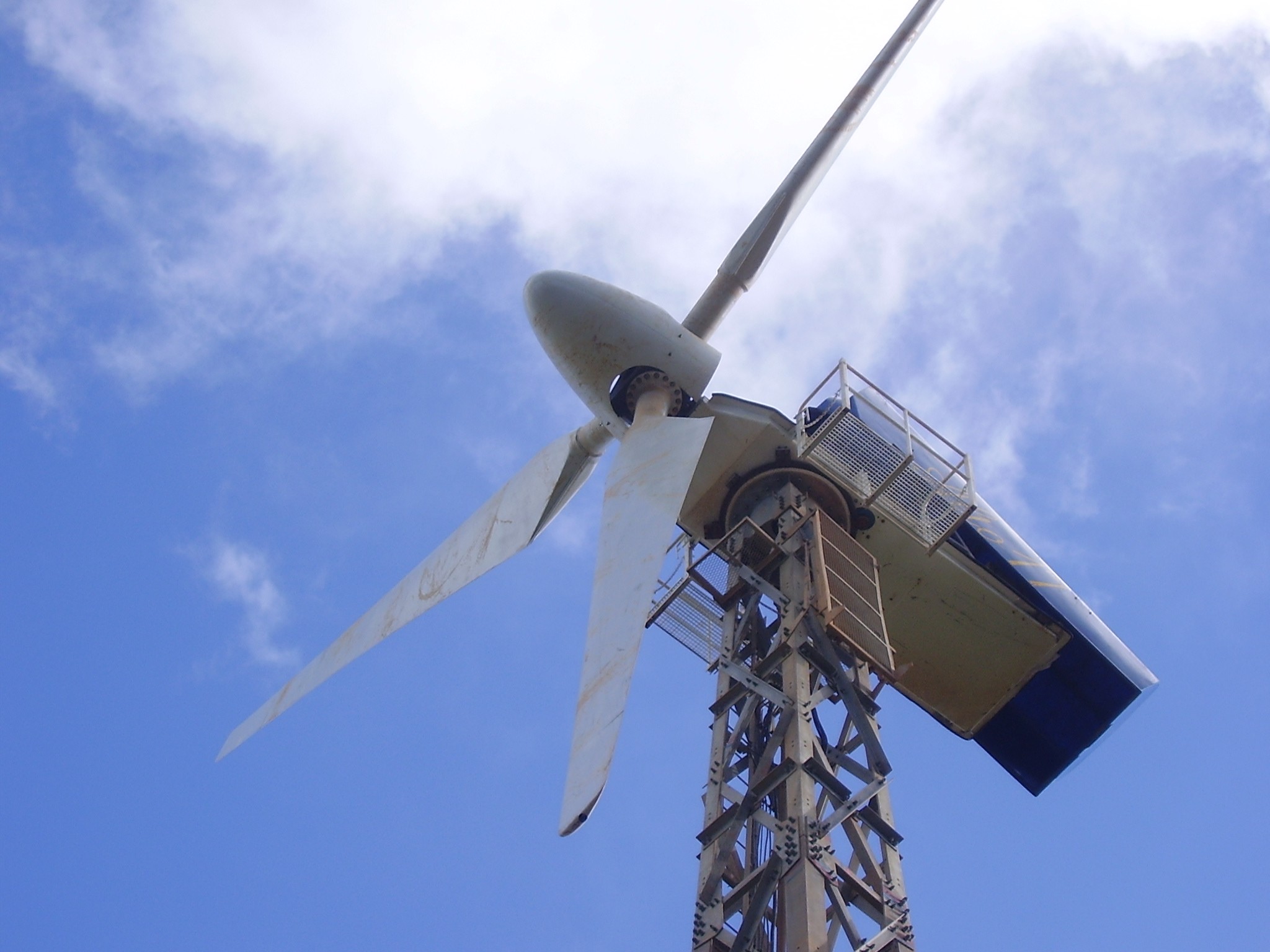

Interconnection Power Bayu With a network of medium voltage 20kV or lower TYPE GAE - PLTB 80 GAE - PLTB100 USAGE Interconnection with the goal of lowering fuel consumption BENEFITS More easy for maintenance Friendly Environmental SPECIFICATIONS Power : 80 - 90 kW (for GAE - PLTB 80); 100 - 110 kW (for GAE - PLTB 100Power) Wind Velocity : 3 m/sec - 14 m/sec Voltage Output : 3 x 220/380 VAC 3 Phasa; TM 20 kV 3phasa Frequency : 20 - 80 Hz

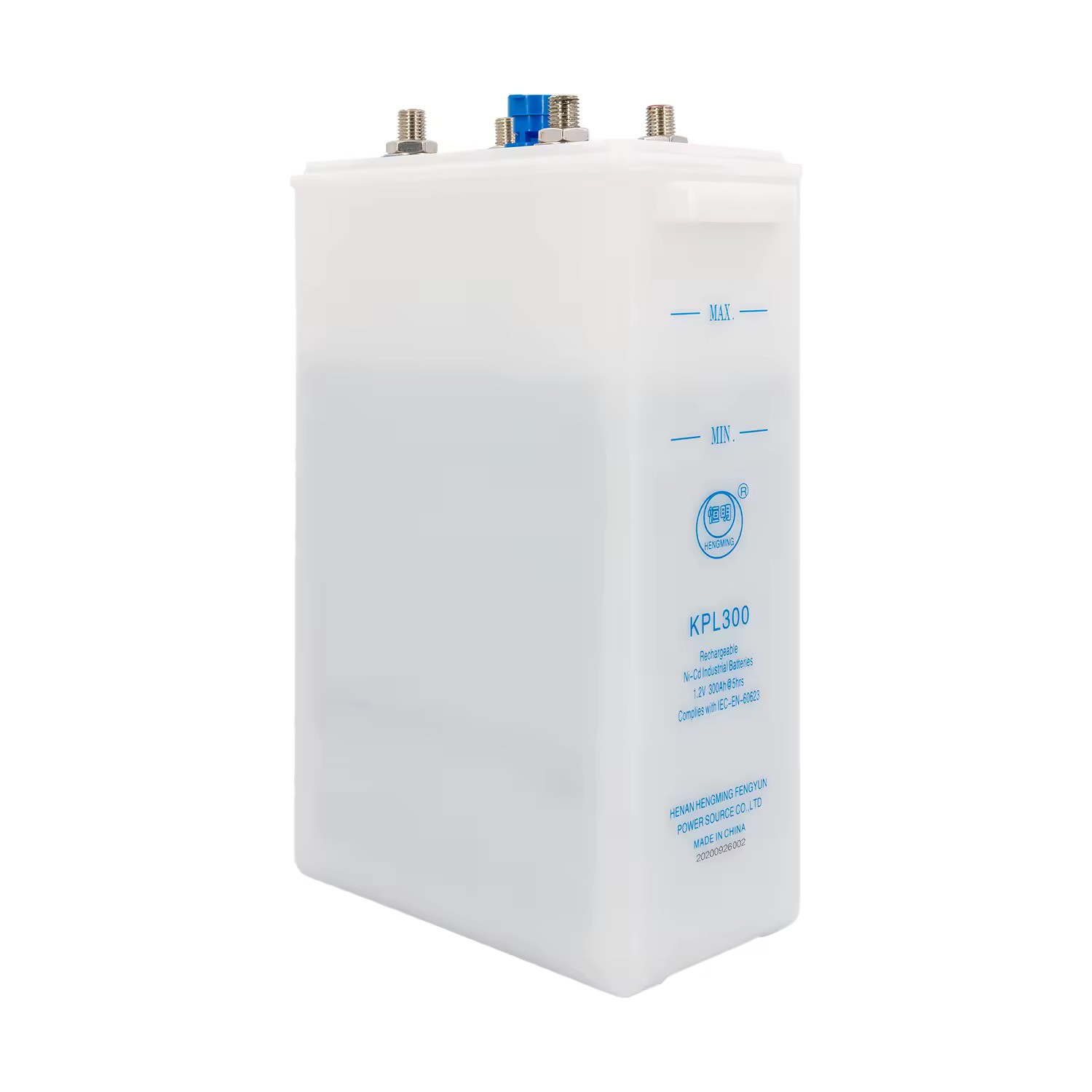

ADVANTAGES - Wide operating temperature range from -25°C to 45°C - Long service life more than 20 years - Excellent charging efficiency and smooth discharge voltage - High resistance to mechanical and electrical abuse - Low maintenance cost and replacement cost APPLICATION 1. KPL Type (Low Discharge Rate) Application : Alarm, Railway Signalling, Telecommunication, UPS/EPS, etc 2. KPM Type (Medium Discharge Rate) Application : Electric Train Control, Process Control, Turbine Starting UPS/EPS, etc 3. KPH Type (High Discharge Rate) Application : Electro Magnets, Engine Starting, Switchgears, UPS, etc 4. KPX Type (Super High Rate) Application : Engine Starting Power, Railway, AGV, etc

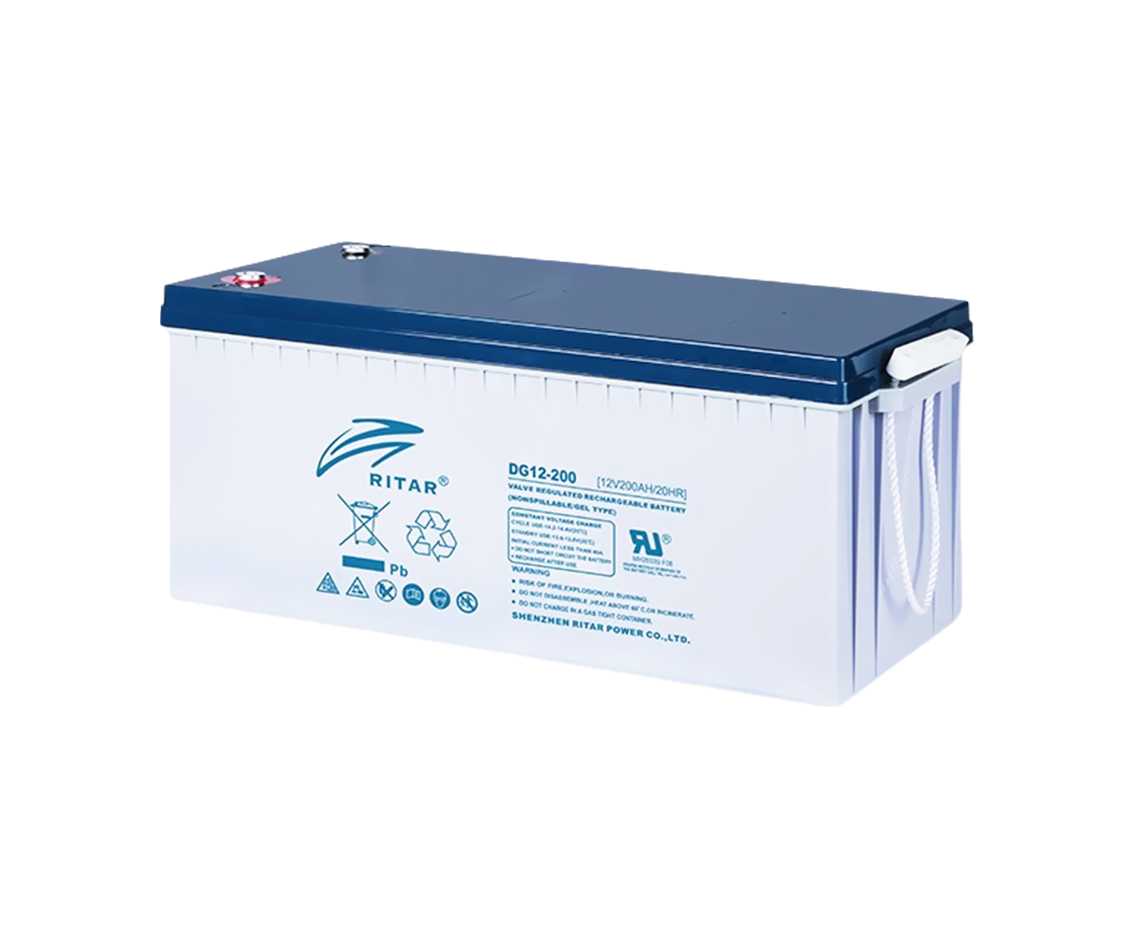

DG (Deep Cycle Gel) series is designed for frequent cyclic charge and discharge applications under extreme environment By using strong grids, high purity lead and patented Gel electrolyte, DG series offers excellent recovery after deep discharge under frequent cyclic discharge and can deliver 400 cycles at 100% DOD. Suitable for solar, CATV, marine, RV and deep discharge UPS etc. APPLICATION - Telecommunication - Photovoltaic - UPS - Cable TV

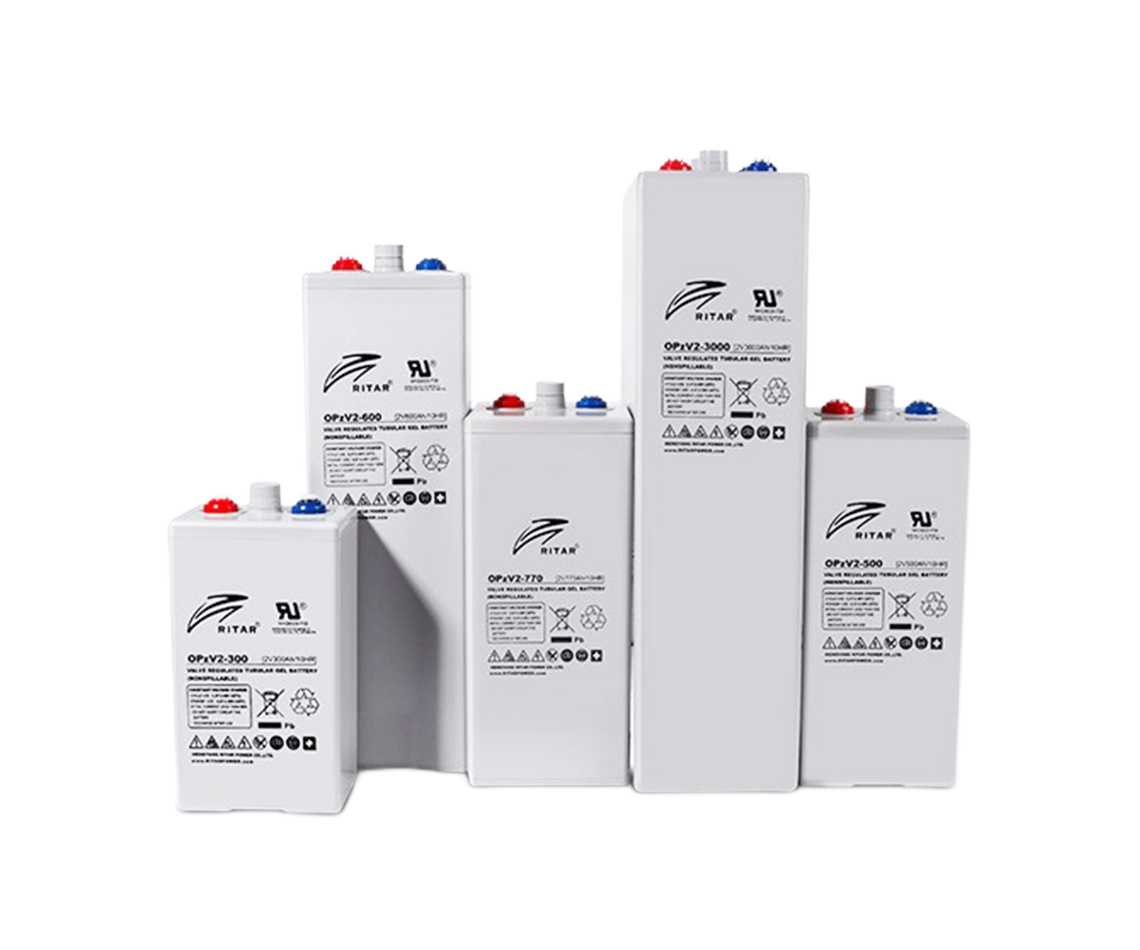

VRLA (Valve Regulated Lead Acid) battery is sealed lead acid battery. It includes gel type and AGM type, both have the following characteristics : - is sealed using special pressure valves and should never be opened. - is completely maintenance-free, needn't topping in service life. - all of its electrolyte are immobilized (absorbed in AGM of fixed in gel structure). - uses recombination reaction to prevent the escape of hydrogen and oxygen gasses which normally lost in flooded lead acid battery. - is non spillable and therefore can be operated in virtually any position (except upside-down). What is the difference between VRLA batteries and traditional wet/flooded batteries? - Wet batteries do not have special pressurized sealing vent, as they do not work on the recombination principle (gasses escaped inside the battery during charging). - It contains liquid electrolyte that can spill / flow and cause corrosion if tipped or punctured. Therefore, they are not air transportable without special containers. - It can only be installed 'upright' and 'acid protection' must be maintained at the same time. - As the wet batteries will lose gasses during charging, it is need maintenance (topping) periodically. - As the electrolyte can flow, 'stratification' will occur and need more overcharge to mix.
